Name: ماكينة لحام متسلسة خطية 2SSW
SKU: 682
Availability: InStock

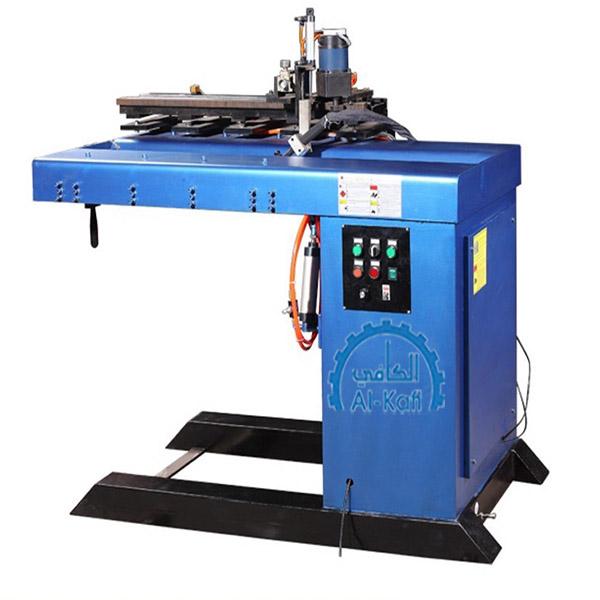

ماكينة لحام متسلسة خطية 2SSW

(0 reviews) (0)

$0.00

Description: Using high power module and the microcomputer control system, the current
\nstable and easy to adjust. Main transformer use imported silicon steel sheet, copper all sand
\nprimary winding and cast copper braid is secondary, entire process use cold protection. Welding
\ncopper wheel adopts high temperature resistant, wear resistant chromium zirconium copper. Use
\ngear shifting motor.

In stock Categories : Other industrial machines , industrial spare parts

Description
Reviews

Parameter data
\nMaximum welding Plate thickness
\nF50 0.4mm+0.4mm
\nF100 0.5mm+0.5mm
\nMax Welding Length 3600mm (double time)
\nMain transformer Rated capacity 50KVA/100KVA
\nVoltage 380v 50HZ
\nSecondary maximum short-circuit current 20KA
\nDuty cycle 20%
\nAir Pressure 0.5Mpa—0.8 Mpa
\nOperation Labor members 1 person
\n8 hours Max. Efficiency 100 pcs inner tank
\nWeight 450kg
\nFloor space (L*W*H) mm 2500*550*1700
