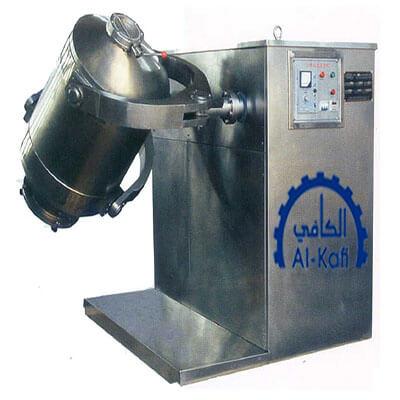

Name: آلة خلط ثلاثية الابعاد YH17/YH20
SKU: 759
Availability: InStock

آلة خلط ثلاثية الابعاد YH17/YH20

(0 reviews) (0)

$0.00

الوصف: معدات خلط عالية الكفاءة، ويستخدم هذا الجهاز لارتفاع التجانس في خلط المسحوق

In stock Categories : خلاطات صناعية

Description
Reviews

Usage and features：

As a high efficient mixing equipment, this machine is used for high homogeneity mixing of powdery and particle materials in such trades as pharmaceutical, food, chemical, light industry, machinery, electronics, mining and metallurgy, national defense industry and scientific research etc.
\nMaterial has no centrifugal force effect, specific gravity segregation, lamination and accumulation during mixing. Each component can be mixed under wide gap of weight proportion, mixing rate reaching over99.9%.
\nLoading coefficient can reach 80%(40% for normal ones).
\nWith compact structure, driving part of the equipment is stepless speed controlled, featuring convenient operation.
\nEach part of drum is transited by are and polished precisely, meeting the GMP requirement.

●　Working principle：

Mixing barrel is suspended on ends of driving and driving axles through two Y type universal joints that are crossing and vertical to each other in the space. When driving axle is driven to rotate, universal joint makes the barrel perform composite motion including horizontal moving, rotation and turning etc. in the space, by which, material also performs 3-dimensional motion inside the barrel. Several kinds of material inside the barrel flow, diffuse, penetrate each other and finally form uniform status.

\n\n

●　Technical Parameters：

\n Model \n	\n HDJ-5 \n	\n HDJ-15 \n	\n HDJ-50 \n	\n HDJ-100 \n	\n HDJ-200 \n	\n HDJ-400 \n	\n HDJ-600 \n	\n HDJ-800 \n	\n HDJ-1000 \n
\n Barrel volume( L) \n	\n 5 \n	\n 15 \n	\n 50 \n	\n 100 \n	\n 200 \n	\n 400 \n	\n 600 \n	\n 800 \n	\n 1000 \n
\n Max loading volume( L) \n	\n 4 \n	\n 12 \n	\n 40 \n	\n 80 \n	\n 160 \n	\n 320 \n	\n 480 \n	\n 640 \n	\n 800 \n
\n Max loading capacity( kg) \n	\n 2.4 \n	\n 7.5 \n	\n 25 \n	\n 50 \n	\n 100 \n	\n 200 \n	\n 300 \n	\n 400 \n	\n 600 \n
\n rotating speed of driving shaft (r/min) \n	\n 15-30 \n				\n 8-15 \n
\n power of motor(kw) \n	\n 0.25 \n	\n 0.37 \n	\n 1.1 \n	\n 1.5 \n	\n 2.2 \n	\n 4 \n	\n 5.5 \n	\n 7.5 \n	\n 7.5 \n
\n Overall dimensions \nmm \n	\n 600× \n1000× \n1000 \n	\n 700× \n1000× \n1000 \n	\n 1000× \n1400× \n1200 \n	\n 1200× \n1700× \n1500 \n	\n 1400× \n1800× \n1600 \n	\n 1800× \n2100× \n1950 \n	\n 1900× \n2100× \n2250 \n	\n 2200× \n2400× \n2300 \n	\n 2250× \n2600× \n2300 \n
\n Weight(kg) \n	\n 150 \n	\n 200 \n	\n 300 \n	\n 500 \n	\n 800 \n	\n 1200 \n	\n 1500 \n	\n 2000 \n	\n 2500 \n
